Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

Current location: home >> Jiawo Electromechanical series

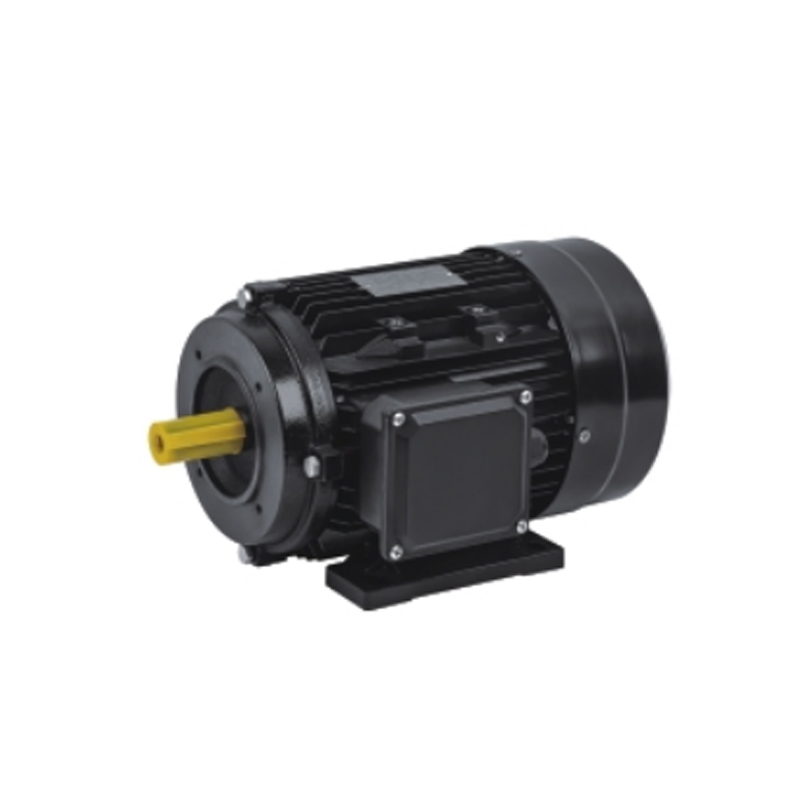

Aluminium housing series three phase asynchronous motor

Aluminium housing series three phase asynchronous motor

Aluminium housing series three phase asynchronous motor

Aluminium housing series three phase asynchronous motor

Aluminium housing series three phase asynchronous motor

Aluminum housing seres three-phase aynchronous motors,with a new design of aluminum alloy

die-casting housing,its instalation size,electrical performance and cast iron shell the same,with a novel

appearance,compact structure,easy maintenance and other characteristics can be widely used in fans,

water pumps,reducer and other fields.

The eficiency value of this series can meet the level 3 standard stipulated in GB 18613-2020,namely

1E3 of IEC60034-30-1.

Product Details:

Protection degree:IP55

Cooling method:IC411

Insulation class:155(F)

Rated voltage:380V

Rated frequencv:50Hz

Operation Mode:S1(continuous duty)

Altitude:less than 1000 meters above elevation

Ambient temperature:-15℃-+40℃

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

Type	Output		Full Load				NoisedB(A)	Vibration(mm/s)	LRT	BDT	LRA	weight(kg)
Type	(kw)	(HP)	Current(A)	Speed（r/min）	Eff（%）	P.F. (Cosφ)	NoisedB(A)	Vibration(mm/s)	RLT	RLT	RLA	weight(kg)
Synchronous Speed3000r/min(2p)
1E3-63M1-2	0.18	0.25	0.52	2740	65.9	0.8	61	2.8	2.3	2.2	7	5
IE3-63M2-2	0.25	0.35	0.67	2740	69.7	0.81	61					5
1E3-71M1-2	0.37	0.5	0.94	2900	73.8	0.81	64					6
1E3-71M2-2	0.55	0.75	1.31	2900	77.8	0.82	64			2.3		7
1E3-80M1-2	0.75	1	1.72	2870	80.7	0.82	62					9
1E3-80M2-2	1.1	1.5	2.43	2870	82.7	0.83	62		2.2		7.6	10
1E3-90S-2	1.5	2	3.22	2880	84.2	0.84	67				7.9	12
1E3-90L-2	2.2	3	4.58	2880	85.9	0.85	67				7.9	14
1E3-100L-2	3	4	6	2880	87.1	0.87	74				8.5	21
IE3-112M-2	4	5.5	7.8	2800	88.1	0.88	77					28
1E3-132S1-2	5.5	7.5	10.6		89.2	0.88	79		2			39
1E3-132S2-2	7.5	10	14.4		90.1	0.88	79		2			45
Synchronous Speed1500rmin(4P)
IE3-63M1-4	0.12	0.18	0.39	1380	64.8	0.72	52	2.8	2.1	2.2	6.6	5
IE3-63M2-4	0.18	0.25	0.54	1380	69.9	0.73	52					5
IE3-71M1-4	0.25	0.35	0.7	1390	73.5	0.74	55					6
IE3-71M2-4	0.37	0.5	0.97	1390	77.3	0.75	55					6
1E3-80M1-4	0.55	0.75	1.38	1420	80.8	0.75	56		2.2	2.3		9
IE3-80M2-4	0.75	1	1.84	1420	82.5	0.75	56		2.3			11
IE3-90S-4	1.1	1.5	2.61	1430	84.1	0.76	59				6.8	12
IE3-90L-4	1.5	2	3.47	1430	85.3	0.77	59				7	14
1E3-100L1-4	2.2	3	4.76	1440	86.7	0.81	64				7.6	21
1E3-100L2-4	3	4	6.3	1440	87.7	0.82	64				7.6	24
IE3-112M-4	4	5.5	8.4	1450	88.6	0.82	65		2.2		7.8	30
1E3-132S-4	5.5	7.5	11.2	1455	89.6	0.83	71		2		7.9	41
IE3-132M-4	7.5	10	15	1455	90.4	0.84	71		2		7.5	48
Synchronous Speed1000r/min(6P)
1E3-71M1-6	0.18	0.25	0.65	910	63.9	0.66	52	2.8	1.9	2	6	6
1E3-71M2-6	0.25	0.37	0.81	910	68.6	0.68	52					6
1E3-80M1-6	0.37	0.5	1.09	920	73.5	0.7	54					9
1E3-80M2-6	0.55	0.75	1.5	920	77.2	0.72	54			2.1		10
1E3-90S-6	0.75	1	2.03	935	78.9	0.71	57					12
1E3-90L-6	1.1	1.5	2.83	935	81	0.73	57					14
1E3-100L-6	1.5	2	3.78	950	82.5	0.73	61				6.5	23
1E3-112M-6	2.2	3	5.4	960	84.3	0.74	65				6.6	28
1E3-132S-6	3	4	7.2	970	85.6	0.74	69				6.8	40
1E3-132M1-6	4	5.5	9.5		86.8	0.74					6.8	43
1E3-132M2-6	5.5	7.5	12.7		88	0.75					7	47
Synchronous Speed1000r/min(6P)
1E3-80M1-8	0.18	0.25	0.76	665	58.7	0.61	52	2.8	1.8	1.9	5.2	9
1E3-80M2-8	0.25	0.35	0.97	665	64.1	0.61	52				5.7	10
1E3-90S-8	0.37	0.5	1.33	685	69.3	0.61	56				6.2	12
1E3-90L-8	0.55	0.75	1.88	685	73	0.61	56			2	5.9	14
1E3-100L1-8	0.75	1	2.27	700	75	0.67	59				6.2	23
1E3-100L2-8	1.1	1.5	3.12		77.7	0.69	59				6.2	25
1E3-112M-8	1.5	2	4.09		79.7	0.7	61				6.7	28
1E3-132S-8	2.2	3	5.7	715	81.9	0.71	64				6.7	40
1E3-132M-8	3	4	7.5	715	83.5	0.73	64				6.9	45
